AX27 Clamshell Rooftop Tent

$4,495.00 Exc. Freight & Taxes

The AX27 Clamshell Rooftop Tent is the perfect blend of comfort, design, and convenience. Being able to store bedding and other items inside make set-up and pack-down processes quick and easy. It is constructed with a super strong extruded aluminium alloy frame, double layered canvas skin, large rainfly, and a dual layered 80mm mattress for optimal comfort. Additionally, there is an array of accessories available for you to customise your AX27 Clamshell Rooftop Tent and complement your touring setup. To find out which of our rooftop tents is best for you, refer to the Rooftop Tent Comparison Table , which provides a side by side comparison of the key features of our rooftop tents.

To help you fully customise your AX27™ Clamshell Rooftop Tent, there’s a wide range of accessories available to really finish off your touring setup, you can check out the full accessory range here.

In stock (can be backordered)

SKU 4RTACSRTT Category Tags , ,

Description

AX27 Clamshell Roof Top Tent – Overview

The AX27 Clamshell Rooftop Tent is the ultimate camping solution that will exceed your expectations, thanks to The Bush Company’s extensive experience in aluminium fabrication and touring/camping.

The robust clamshell design is super fast to set up/pack down and provides a roomy internal space for easy access and maximum comfort, making it perfect for a luxurious camping experience.

Made from top-quality materials that can endure the toughest of weather conditions, the AX27 Clamshell Rooftop Tent will offer you an unforgettable camping time that will leave you feeling confident that you have made the right choice.

This product features a fully seam welded lightweight alloy frame with a high quality powder coated finish. The 2m long cargo rails are welded to the top of the roof, making it easy to attach accessories or the optional roof load bars. The internally reinforced roof is load rated to 200Kg when closed, or 50kg when open.

The tent body is made of two layers of 310g polyester rip stop acrylic infused mould and mildew resistant canvas. A large canvas removable rainfly is located at the rear and sides of the tent with heavy duty 8mm spring steel poles and adjustable storm straps for heavier wind conditions.

There is an air vent above the rear entrance with midge mesh and zipped canvas flap on the inside. Additionally, the base and top frame feature ‘Ezi-Slots’ that provide an easy attachment of accessories such as awnings, hi-lift jacks, light bars etc. Finally, the tent has three entry points; rear, left and right sides all with YKK zippers and external canvas storm door with high quality midge mesh and internal canvas door.

Sleeping and Storage

You’re in for a treat with the AX27 – an effortlessly spacious rooftop tent that holds all the comforts of home, and then some. With three sizeable windows/doors, all with double canvas doors and midge mesh, natural light and ventilation are in ample supply.

The mattress, layered with medium and super density foam that’s a plush 80mm/3.15″ deep, is topped with a removable canvas cover for easy care. And the tent’s interior? Wide enough to accommodate two sleepers with additional room to spare – so feel free to bring all the bedding and extras your heart desires.

With the AX27, storage won’t be an issue: storage pouches and pockets are abundant, accompanied by thoughtful touches like water bottle holders. Camping just got a serious upgrade thanks to the AX27.

Accessories and Electrics

With our top-of-the-line tent, you can take on any adventure with confidence. Load up your gear, from surfboards to kayaks, on the roof of the tent without worry.

Whether you’re off the grid for days or just need a quick power boost, mount solar panels to the roof and keep all your devices charged with the multiple power sockets and USB ports inside the tent. The tent’s power connection is easy to access, thanks to the 50amp anderson plug on the underside of the tent base. And don’t forget the tr-colour rechargeable LED light that can be positioned anywhere on the roof for optimal lighting.

With the optional fan mount bracket, you can even add a 12V Scirocco fan to enhance your comfort. The tent’s accessory brackets make it easy to carry shovels, hi-lift jacks, and lightbar/spot light brackets, ensuring you’re always equipped for your next adventure.

AX27 Clamshell Roof Top Tent – Product Specifications

  • External Length: External Frame 2.25m /7′ 4.6″ (2.32m / 7′ 7″ inc hinges & handles)
  • External Width: External 1.4m (4′ 7.1″), 1.45m (4′ 9″) including gas struts
  • Height (exterior, closed): 278mm (10.94″) including roof rails and base extrusions
  • Max Height (exterior, open): 1.75m (5′ 9″)
  • Max Height (interior, headroom open): 1.7m (5′ 7″)
  • Internal Mattress: Length 2.13m / 7′, Width 1.28m / 4′ 2″, Thickness 80mm / 3.15″
  • Weight: Approximately 99kg (218lbs) excluding telescopic ladder
  • Universal fitting kit/brackets included with tent.
  • Large canvas removable one piece rainfly at rear and sides of the tent with heavy duty 8mm spring steel poles and adjustable storm straps for heavier wind conditions.
  • Air vent above rear entrance with midge mesh and zipped canvas flap on inside.
  • Fully seam welded lightweight alloy frame with high quality powder coated finish.
  • 2m (6′ 6.7″) long cargo rails welded to the top of the roof, suitable for attaching accessories or the optional roof load bars .
  • Internally reinforced roof, load rated to 200Kg (440lbs) when roof closed, or  50kg (110 lbs) when open.
  • ‘Ezi-Slots’ extruded into the sides of base and top frame for easy attachment of accessories such as awnings, hi-lift jacks, light bars etc.
  • Two layers of 310g/9,2oz (+/- 10%) polyester rip stop acrylic infused mould and mildew resistant canvas on body of tent.

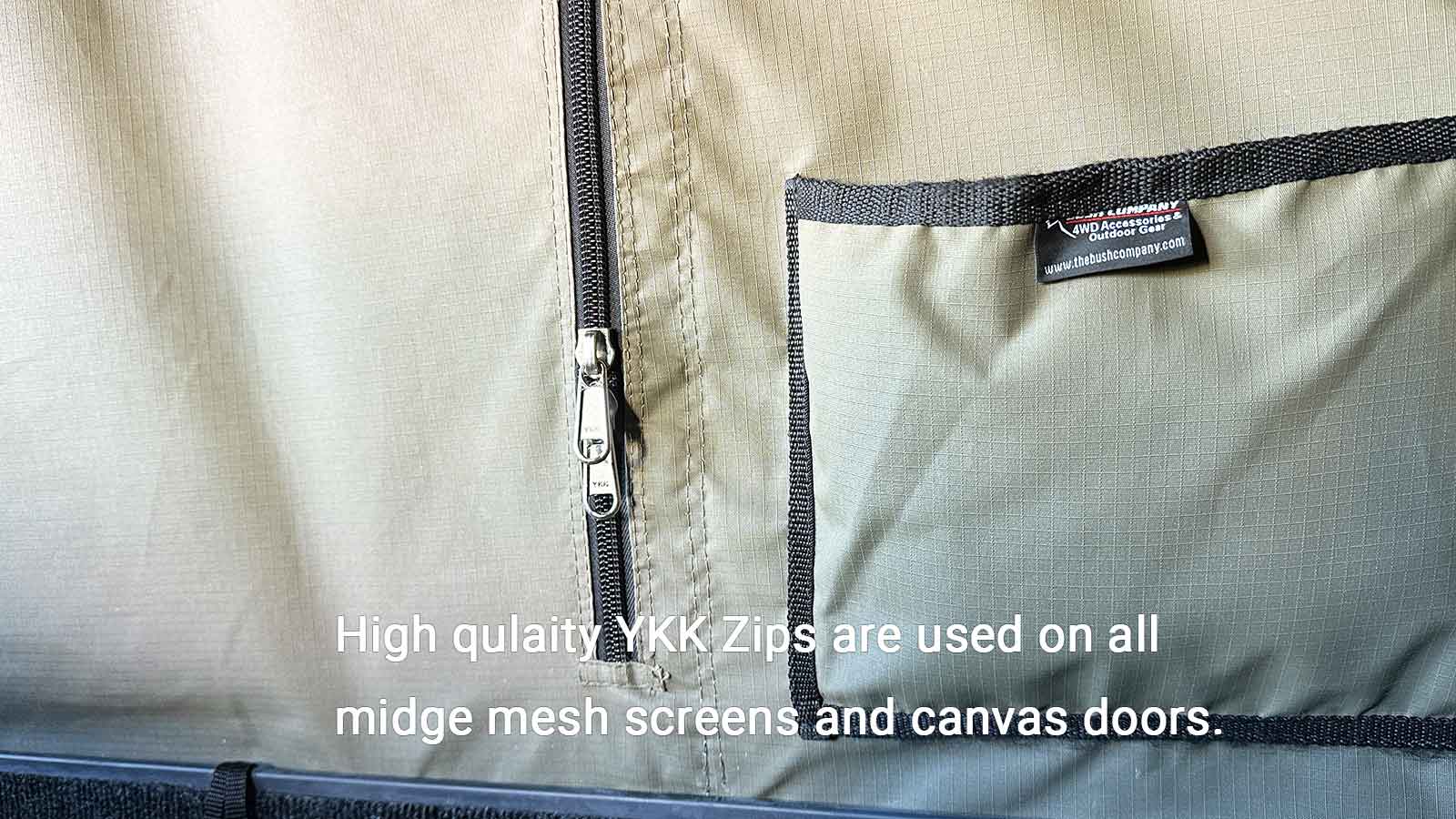

  • Three layers at entry points all with YKK zippers: external canvas storm door, high quality midge mesh and internal canvas door.
  • Three entry point to tent, rear, left and right side.

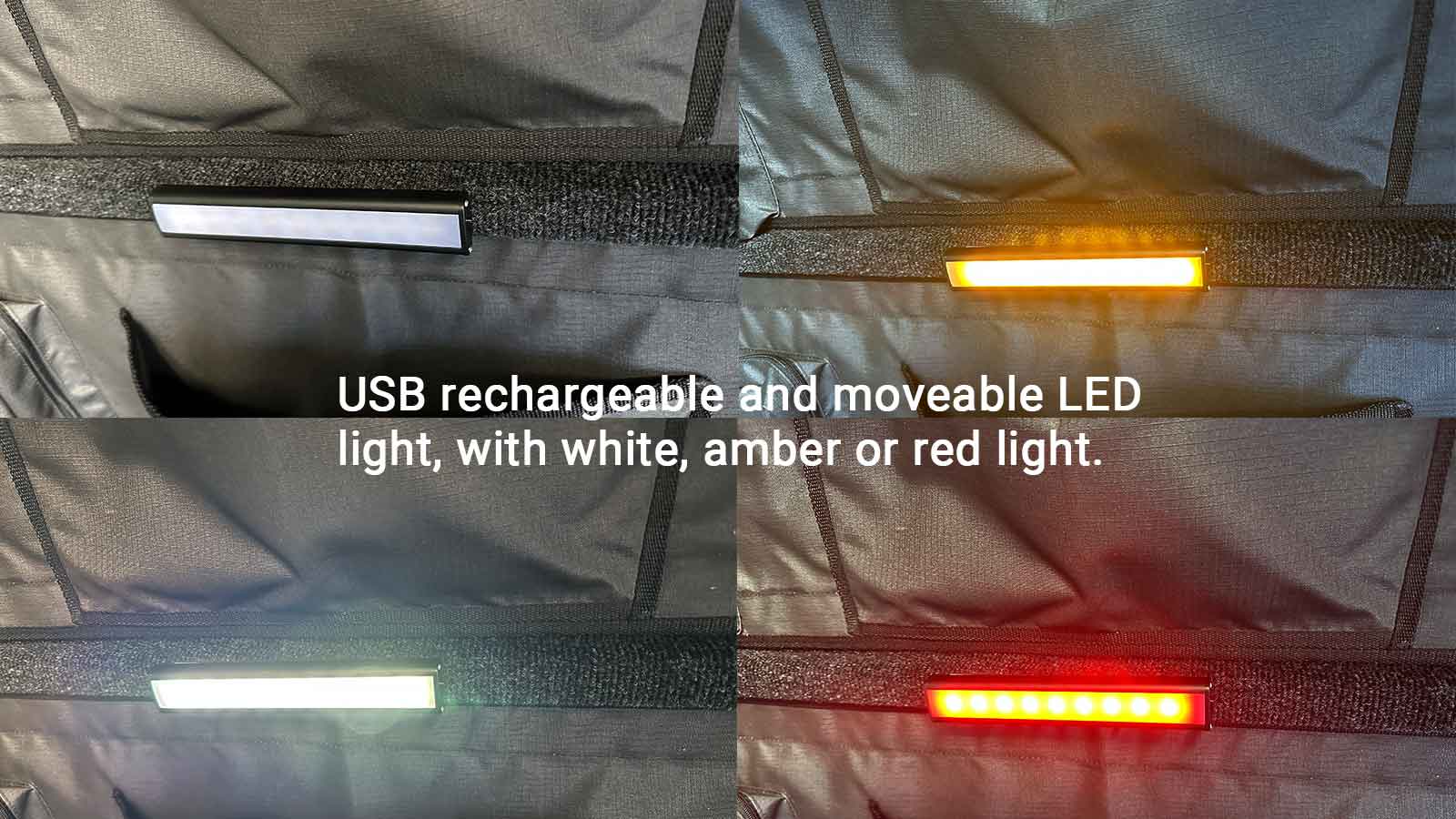

  • Internal movable battery powered LED light (shines white, yellow or red).

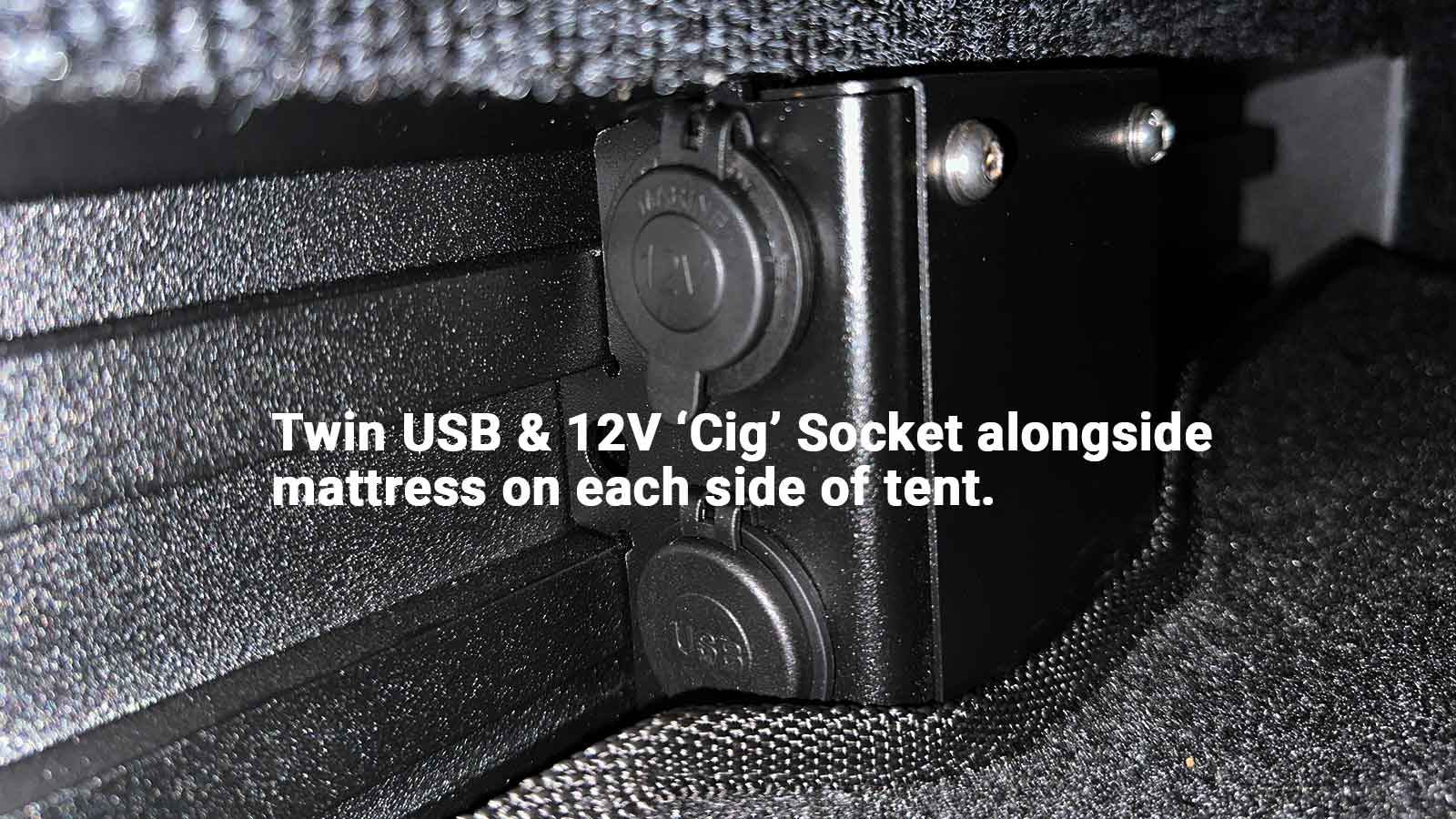

  • Two sets of electrical sockets each with twin USB, CIG Socket plug, mounted to internal roof, with resettable thermal fuse.

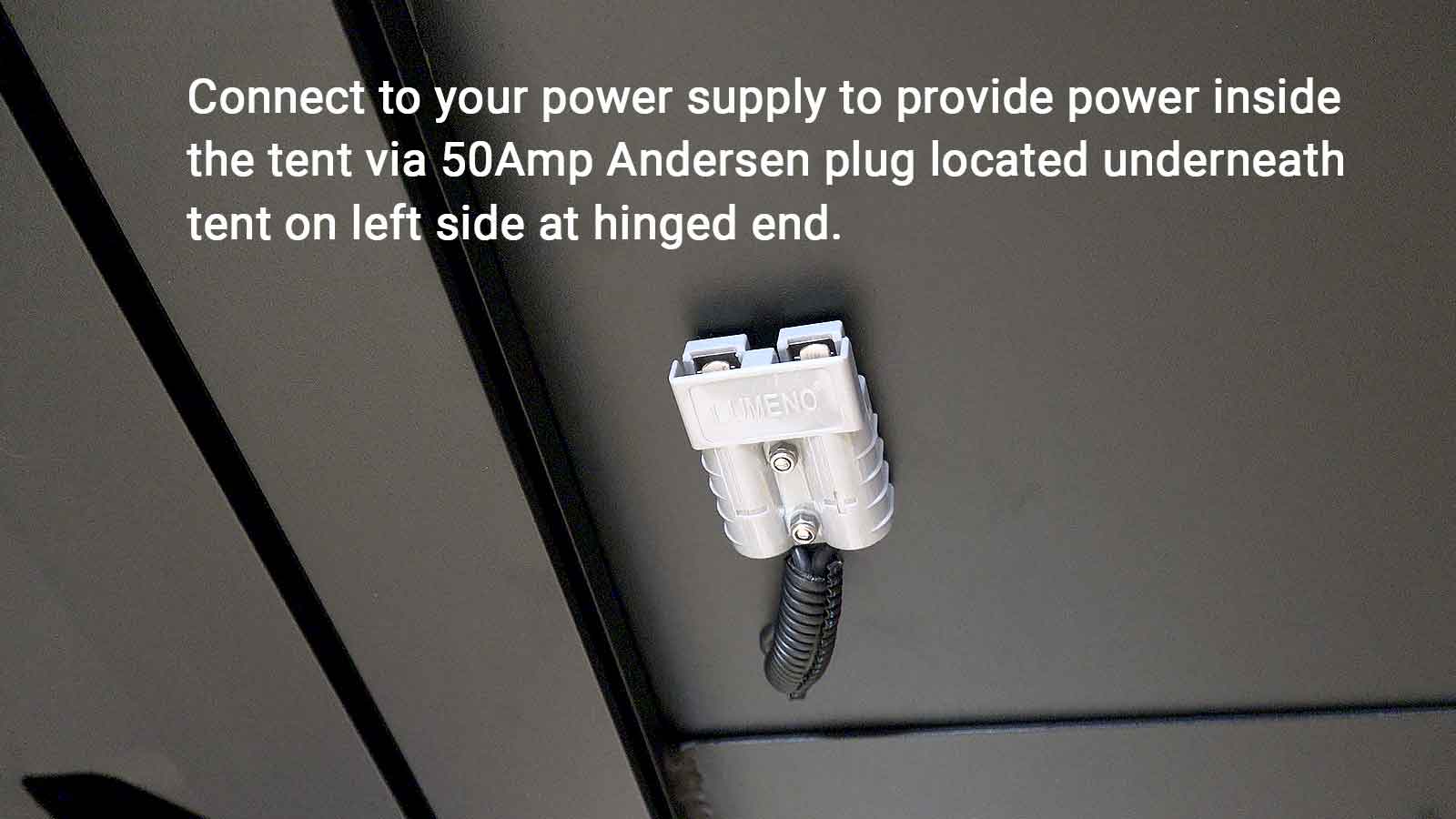

  • External 50 amp andersen plug mounted to underside of tent at hinged end on left side for connection to vehicles power.
  • 12cm / 4.7″ of storage space above mattress when tent closed, so plenty of room for bedding, pillow, fishing rods, rifles etc.

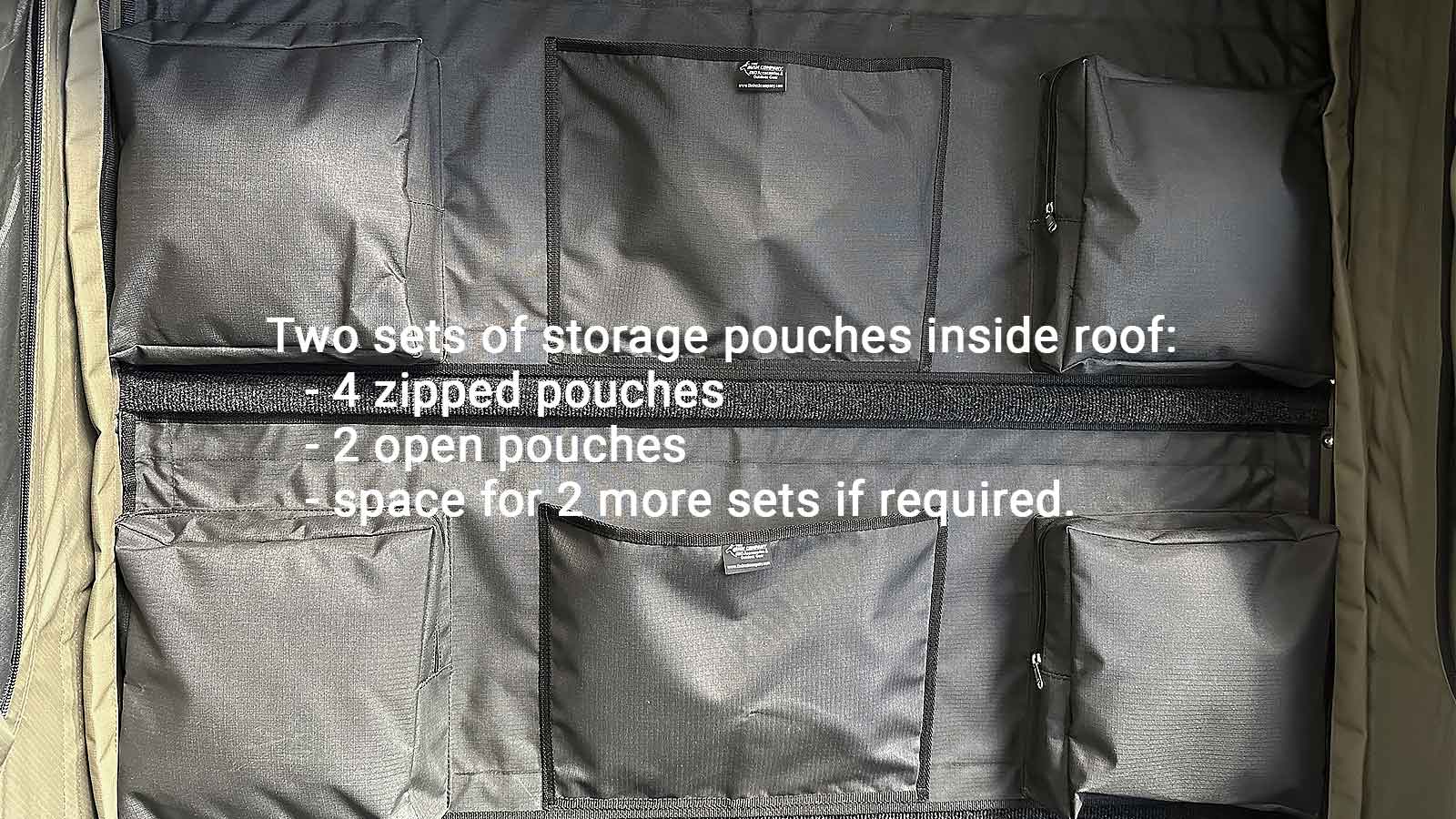

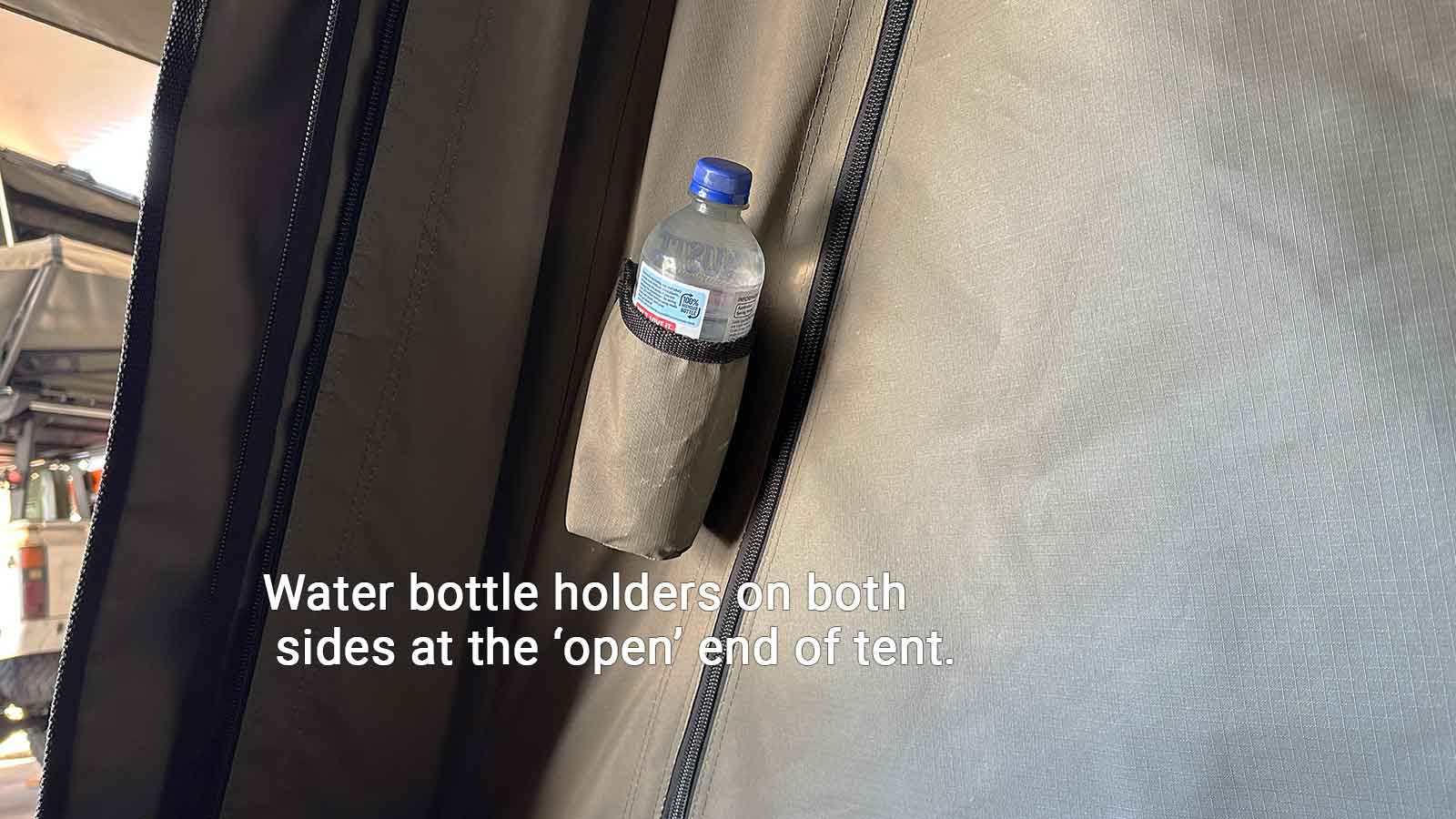

  • 6 storage pouches on inside of roof, 2 large pouches on each side at hinged end and convenient water bottle pockets on each side at open end.

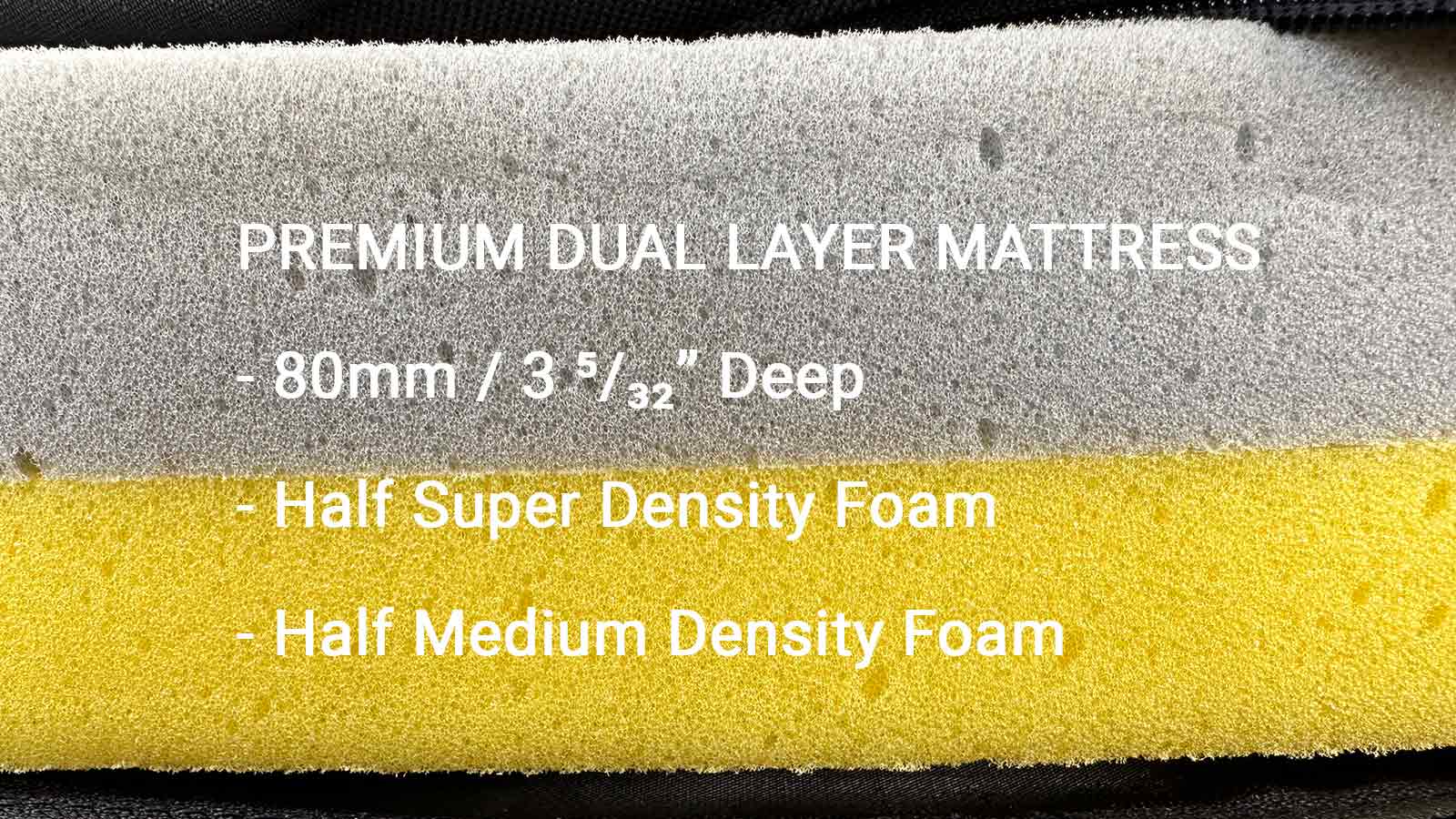

  • 80mm / 3.15″ thick mattress, split half super high density and half medium density with removable zipped canvas cover.

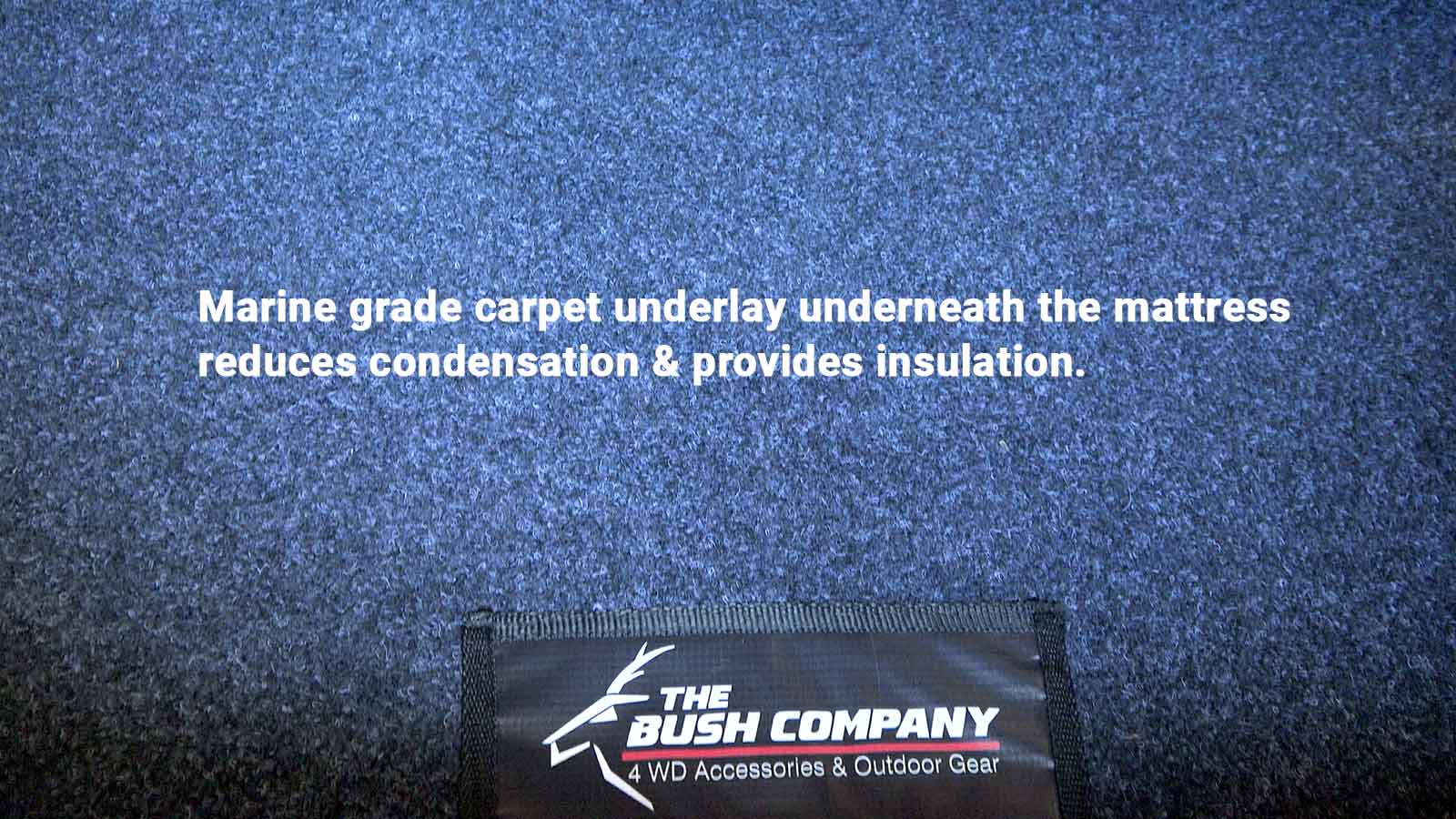

  • Thermal marine carpet underneath mattress and carpeted internal roof liner.
  • Telescopic 2.6m / 8′ 4.3″ aluminium ladder with attachment points at rear and sides of tent, supplied in canvas storage bag.

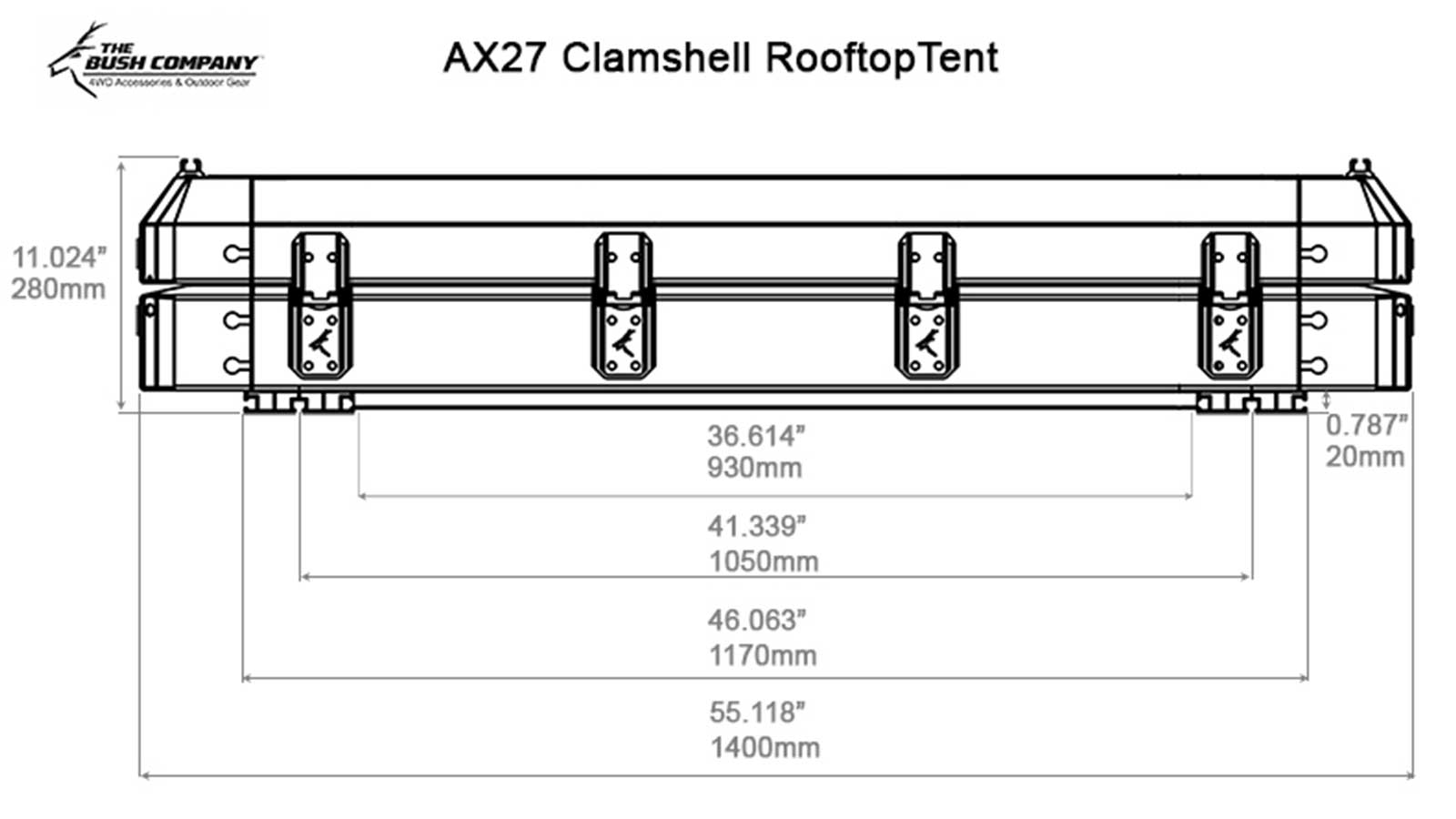

  • Two heavy duty 20mm / 0.8″ high aluminium extruded foot rails underneath tent with M8 slots on sides and base for easy mounting, set 1050mm / 41.34″ apart centre to centres joined by multiple 25mm thick sections of welded box tubing for additional strength and floor support.
  • 2 Year conditional warranty.

Rooftop Tent Care and Maintenance

We recommend that new tents are thoroughly wet down on the outside before first use. This will ensure that your  tent performs well in wet weather by allowing the poly/cotton corespun thread and canvas to swell ensuring the take up of any potential leaks in the stitching.

Cleaning Canvas:
– Do not use soap or detergents on the canvas.
– Do not store the product if wet, allow drying first.
– To clean use a soft brush and cold water.
– Do not expose to petrol, oils or harsh chemicals.

Cleaning mould:
– Allow mould to dry
– Remove surface mould off with stiff bristle brush
– Vacuum the area
– Treat area with Oil of Clove spray (diluted spray can be purchased or can be mixed using a few drops of oil into a spray bottle of water)

Condensation:
Condensation is a natural occurrence in cold weather. In confined areas like tents the body releases more moisture than the canvas can dispose of. To help to reduce condensation build up, we recommend keeping some of the windows open on the tent to enable airflow on cold nights. If you are not using your tent for an extended period of time (more than 10 days) we recommend opening the tent regularly to allow it to air out, and possibly even remove the mattress and store it separately until your next trip.

Installing Your Rooftop Tent

A copy of the fitting instructions is available for download here

The Bush Company or one of our stockists can assemble and install your tent, but if you choose to install the rooftop tent yourself please make sure that you have done the due-diligence on your intended install to ensure that it does not create any safety issues and ensure that you follow standard safety precautions when undertaking the install.

If you are installing the rooftop tent yourself please watch our  Pre-Insatll Assemply video for tents.
